Technical Information

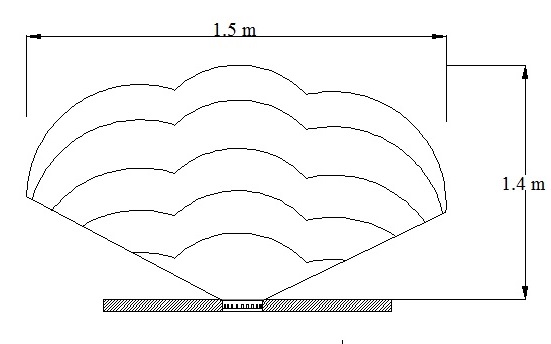

It is used as blowing diffusers in Hvac systems. It is suitable for shooting from the ground. The ideal shooting distance is between 0.5-1.5 m. It is used in raised floor applications. It is standard screwless mounted. Installation method can be changed optionally. Air regulation is made by damper method. It is used in movie theaters, conference halls and offices. It provides comfortable ventilation of the air by reducing the heat load on the items and people during the upward air flow. It does not cause turbulence.
|
Documents
| CKD-06-EN |
|
|
|
|
|
|
|
|
